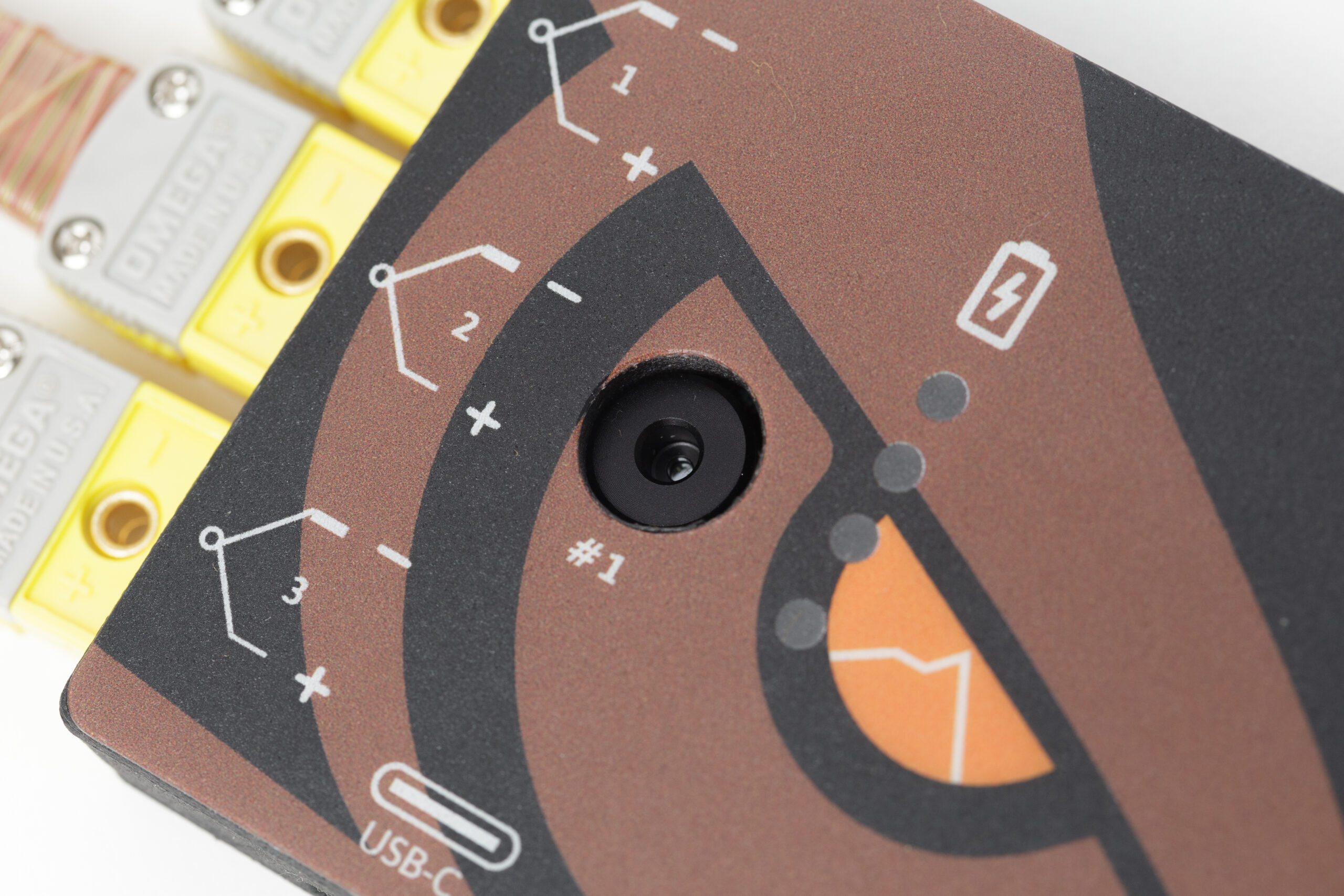

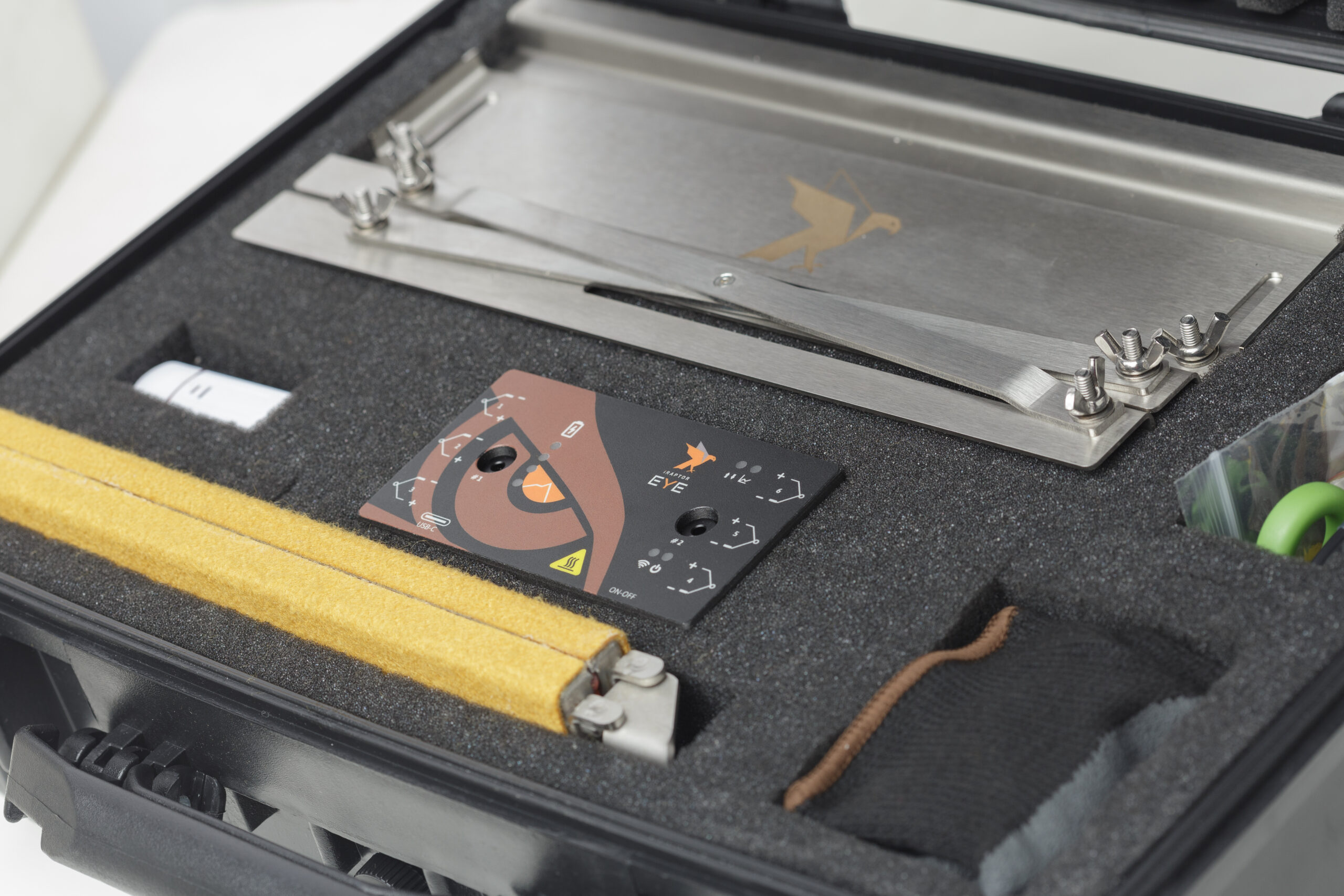

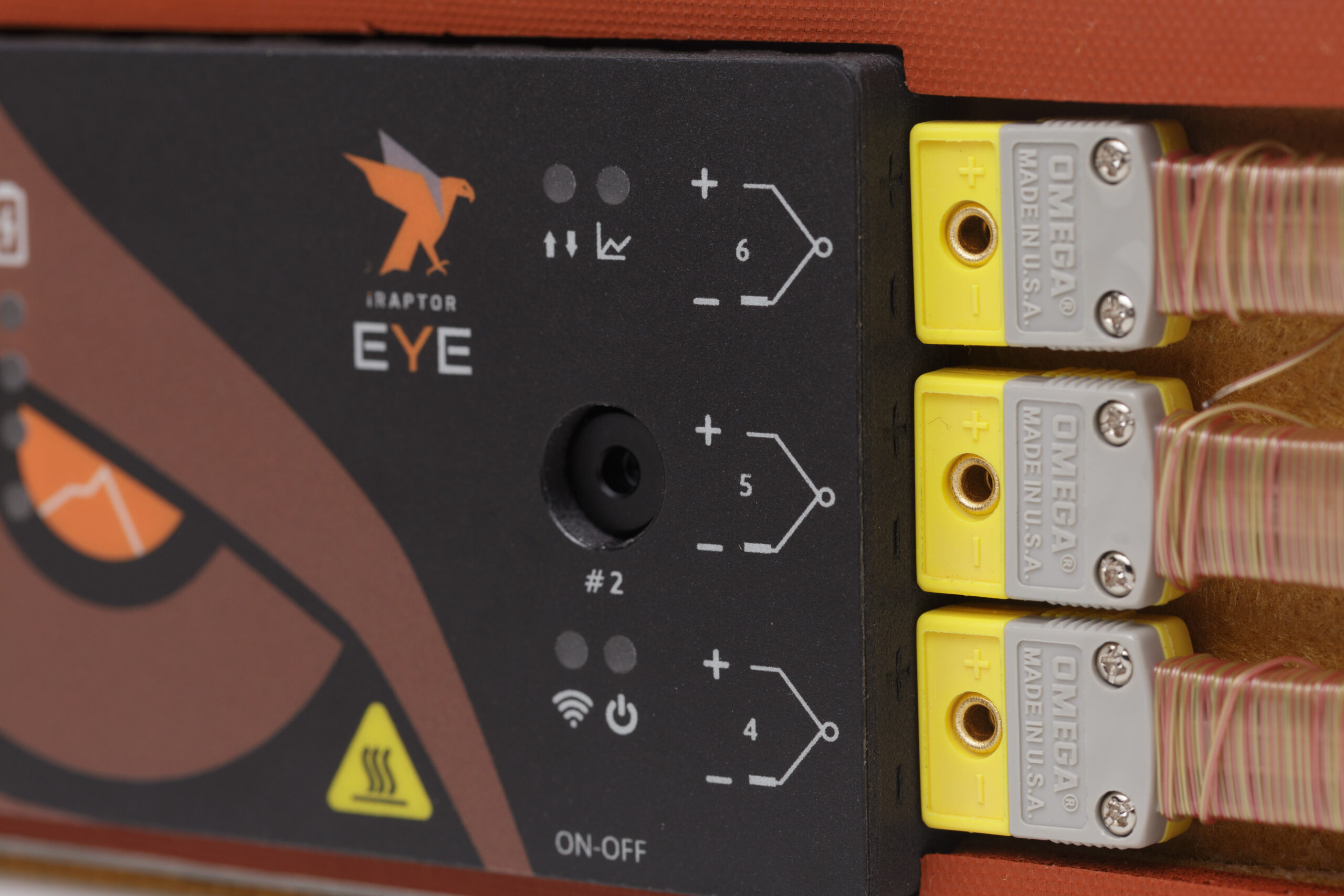

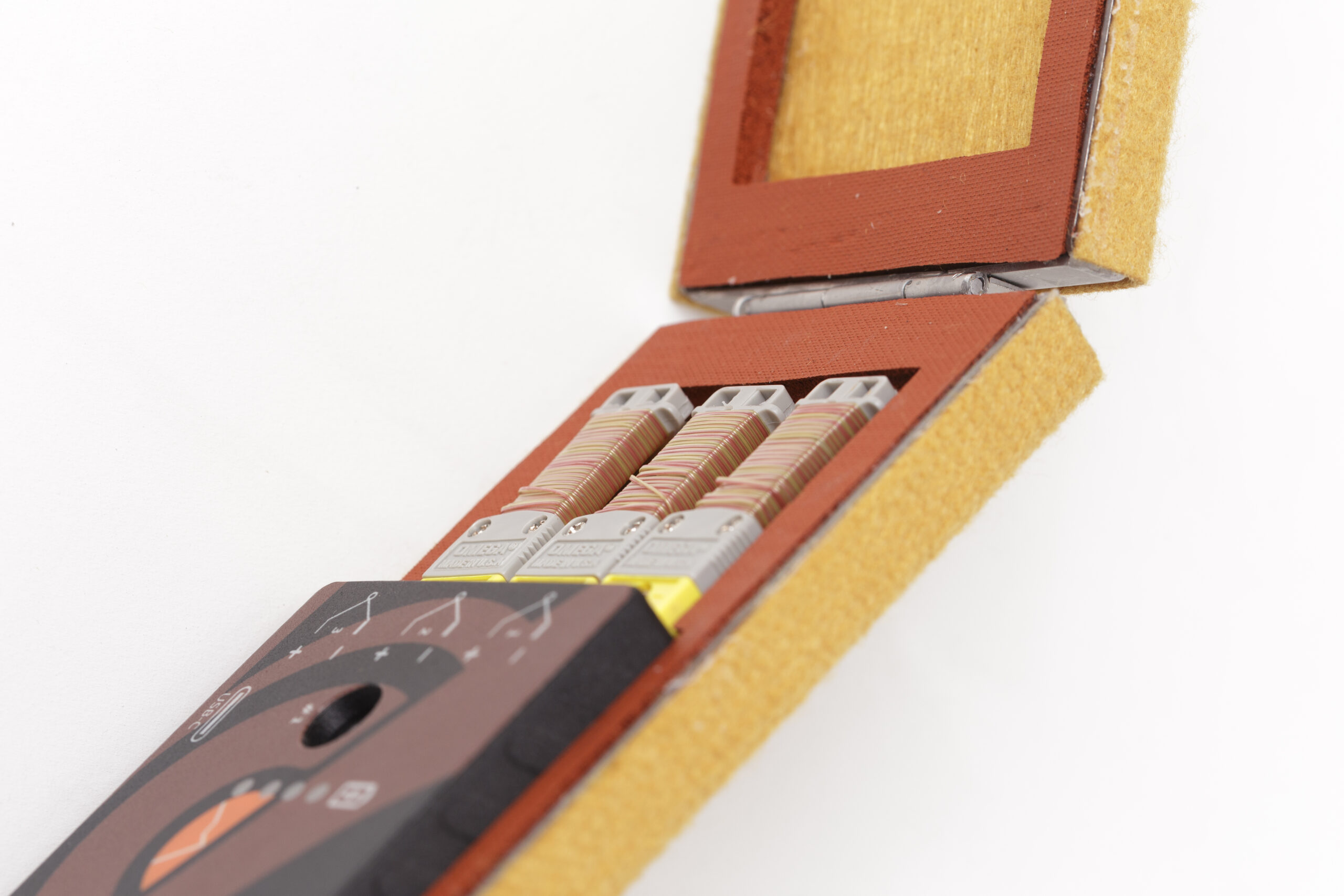

iRaptor Eye

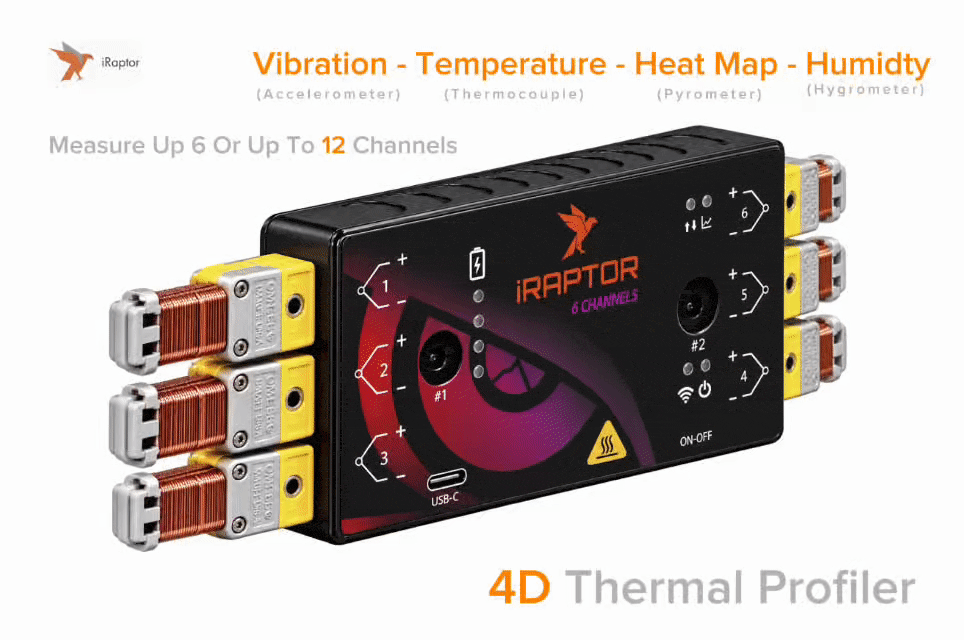

Thermal Profiler with Vibration Measurement
- All in one Profile, Temperature, Vibration, Heat Map
- Profile fit-to-process window quantified using CPI values
- Vibration & Pyrometers for checking machine repeatability with same tool
- Pyrometer will measure actual zone temperature in order to monitor oven performance

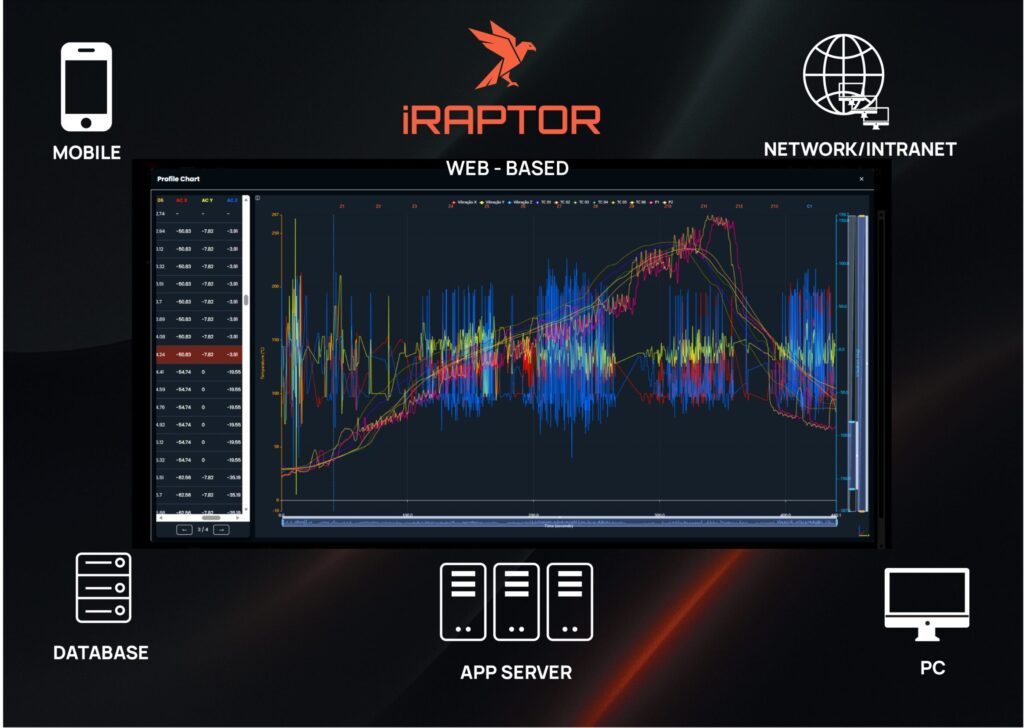

Cloud-Based Machine Monitoring
All Your Profile Data, Heat Maps, Vibration and Humidity measurements, Connected Anywhere in the World
Heat Map
(Pyrometers)
Visualize heat distribution inside various equipment (ie screen printer) to identify hot spots, track temperature, overheating, etc.
Vibration
(Accelerometers)
Detect equipment vibration and mechanical instability to help prevent process failures.

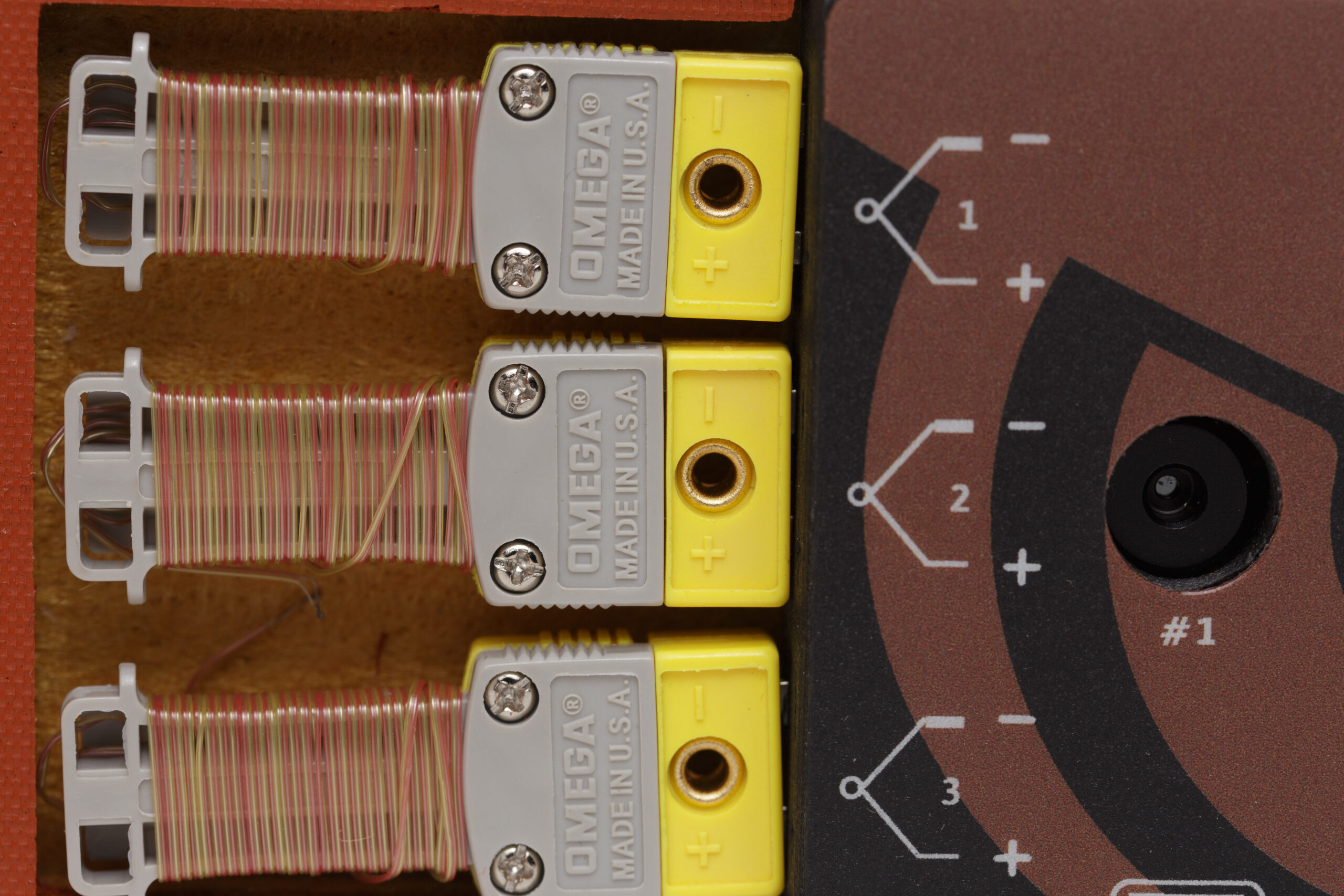

Temperature
(Thermal Couples)
Measure Temperature accurately in real time for reliaable and repeatable process control.
Humidity
(Hygrometer)
Track temperature and vibration over time to create dynamic 4D thermal profiles and optimize processes.
Application
- The iRaptor is the first thermal profiler in the world to offer 4D thermal profiling. With its Universal Vibration Measuring tool, the system can also measure vibration in the printer, pick & place and reflow oven (or any machine system really, for example vacuum pumps).
- Reflow optimization tool automatically advises the recipe
- Solder paste and component specs library eliminates
- Clear Graphics display, SQL database including ability to export to MES
